TP30 TP40 Hydraulic Trash Pump
Hydraulic Submersible Water Pump SP20 SP25 SP30 TP30 TP40
*Hydraulic submersible water pump is suitable for pump sewage water.Use for municipal affairs,water and gas Rush-Repair mining well and so on.
- Overview
- Recommended Products
Product Description

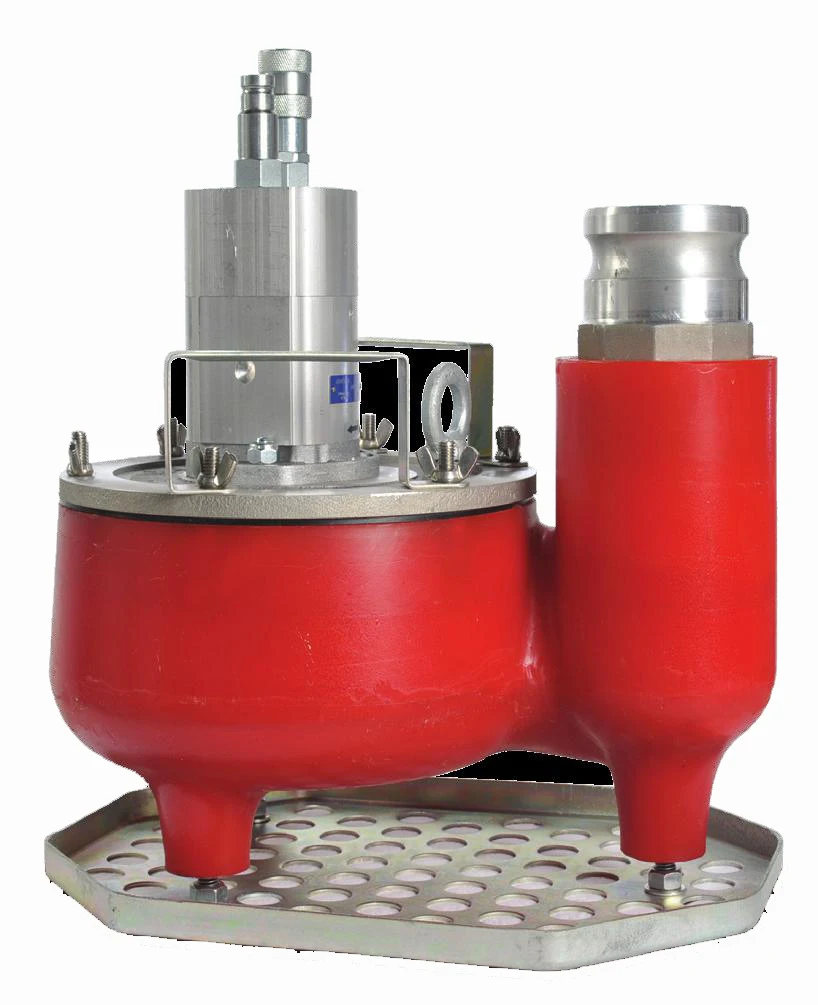

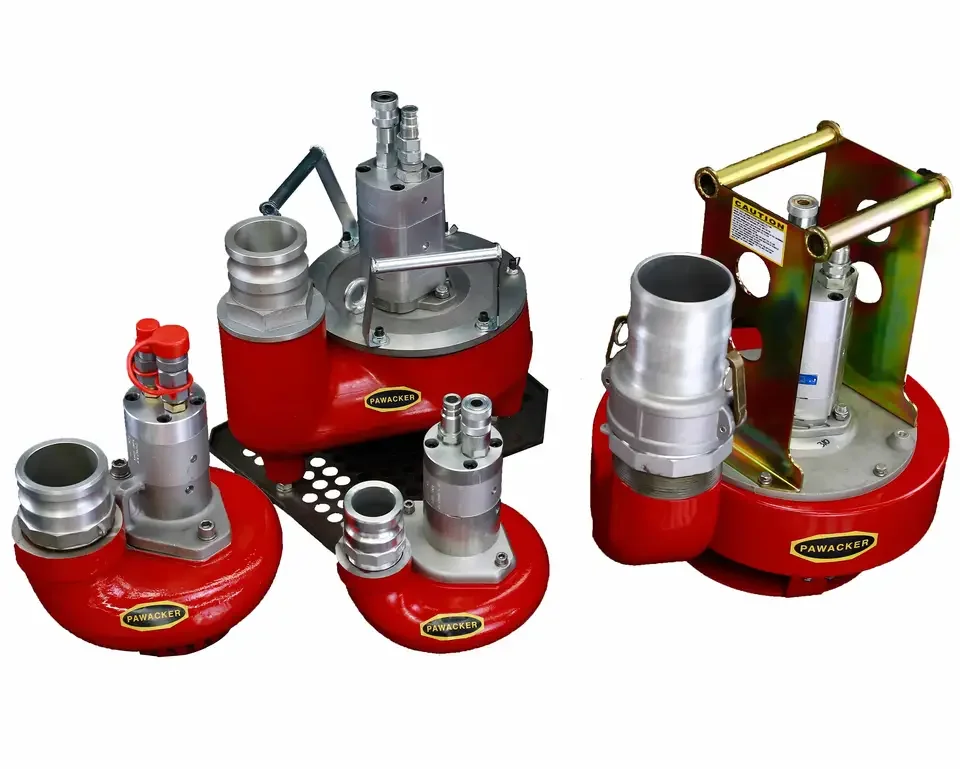

Hydraulic Submersible Water Pump TP30 TP40
Hydraulic submersible water pump is suitable for pump sewage water.Use for municipal affairs,water and gas Rush-Repair mining well and so on.
The trash pump has more water environmental capacity and displacement than common one.Pump high volumes of water,sand slurries,gravel,sludge and so on.Use for highway,municipal affairs,gas,heavy rescue&recovery and natural disasters.
Specification
TP30 TP40 3'' 4'' Hydraulic Trash Pump
|
Model
|
TP30
|
TP40
|
||
|
Pump Type
|
Trash-Sludge-Slurry-Water
(solid diameter:0-10MM) |
|||
|
Pump Head
|
M
|
30
|
10
|
|
|
FEET
|
98
|
32
|
||
|
Pumping Capacity
|
m3/h
|
107
|
198
|
|
|
GPM
|
475
|
875
|
||
|
LPM
|
1800
|
3312
|
||
|
Construction
|
Urethane Volute and Impeller
|
Steel Construction/Iron Impeller
|
||
|
Discharge
|
3" Cam Loc - 3" Female NPT
|
4" Cam Loc - 3" NPT Male
|
||
|
Weight
|
KG
|
13.6
|
26.8
|
|
|
LB
|
30
|
59
|
||
|
Dimension
|
MM
|
355*305*330
|
482*381*482
|
|
|
INCH
|
14*12*13
|
19*15*19
|
||
|
Hydraulic Flow Range
|
GPM
|
7-11
|
7-9
|
|
|
LPM
|
26-42
|
26-42
|
||
|
Maximum Pressure
|
PSI
|
2000
|
2000
|
|
|
BAR
|
138
|
138
|
||
|
Maximum Back Pressure
|
PSI
|
250
|
250
|
|
|
BAR
|
17
|
17
|
||
