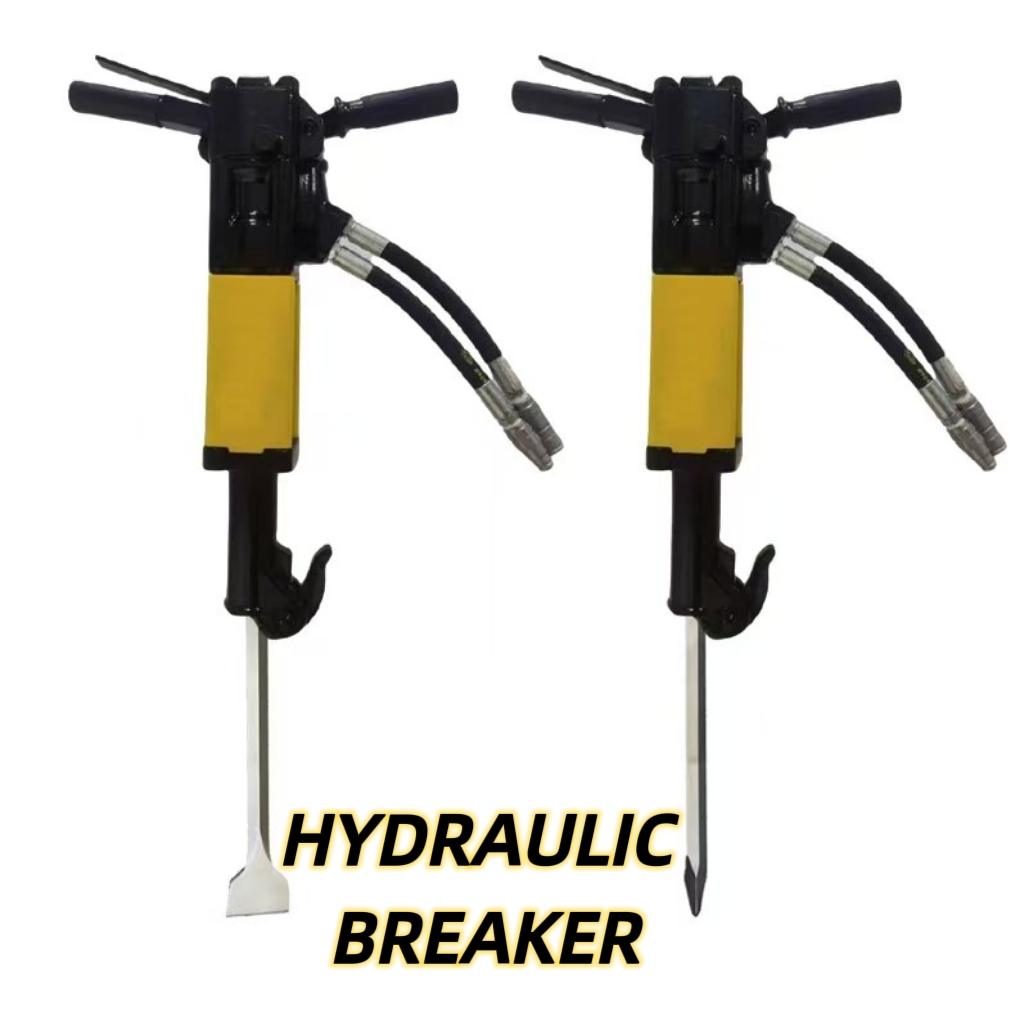

How Does a Hydraulic Breaker Demolish Concrete?

Working Principle of a Hydraulic Breaker

How Hydraulic Pressure Powers the Piston and Chisel Mechanism

These powerful machines work by turning hydraulic power into actual mechanical strength using pistons as their main components. The system works when high pressure fluid, typically between 150 and 350 bars, gets pushed into the main chamber inside the breaker body which then pushes the piston upwards against resistance. At the peak moment of pressure build up, there's a clever little valve mechanism that switches direction, sending all that pressurized fluid down below instead. This sudden shift lets the piston drop rapidly towards the bottom where it meets the chisel head for impact. Each hit packs around 5,000 joules worth of punch according to data from Construction Machinery Institute back in 2023, making short work of even tough concrete surfaces without much wasted effort.

Role of the Hydraulic System in Generating High-Impact Force

How well a hydraulic breaker works really comes down to two main factors: system pressure and flow rate. The closed loop valve setup makes things more efficient because it moves fluid back and forth between the top and bottom parts of the piston. This keeps the hammer going at around 400 to 800 hits every minute. Some newer versions actually grab back about 20 to 30 percent of leftover pressure from each hit, which means better energy use without needing extra fuel or power. Manufacturers have found this helps save money in the long run while still getting good results from their equipment.

Cycle of Operation: From Fluid Flow to Repeated Striking Motion

1. Pressurization: Hydraulic fluid flows into the upper chamber, lifting the piston.
2. Impact: The control valve shifts, directing fluid below the piston to drive it downward rapidly.
3. Retraction: Residual pressure returns the piston to its starting position.
   This cycle repeats 4–8 times per second, enabling continuous fracturing with minimal energy loss and consistent performance across extended operations.

Function of the Accumulator in Maintaining Consistent Impact Performance

Nitrogen charged accumulators serve as kind of shock absorbers for hydraulic systems, soaking up those pressure spikes that happen all the time in field operations. These devices actually store extra energy when equipment isn't working hard, which helps maintain consistent impact power no matter what kind of load comes along. According to some recent testing from Construction Machinery Institute back in 2023, these accumulators cut down on those nasty pressure dips by about 40%. That makes a big difference in real world scenarios like smashing through reinforced concrete walls or running machinery where the fluid flow just barely meets minimum requirements.

Core Components and Their Role in Concrete Demolition

Key parts of a hydraulic breaker: Piston, valve system, and housing

Hydraulic pressure gets converted into actual movement by the piston, which then drives the chisel with remarkable accuracy. There's a pretty advanced valve setup inside that manages where the fluid goes, so we can control how the piston moves. When it lifts, it does so through hydraulic action, but when it comes down? That's where things get interesting. Speeds often go beyond 20 meters per second during descent. The whole assembly sits inside a housing made from special shock resistant steel. This isn't just for show either. The steel casing keeps dirt and other nasty stuff away from sensitive parts while also cutting down on vibrations that would otherwise travel all the way to the excavator itself. Operators notice the difference in comfort levels, and machines last longer too because of this protection.

How the chisel (tool bit) transfers energy to concrete surfaces

A tapered chisel shape packs around 90% of that piston power right into a tiny spot measuring less than 5 square centimeters. When this intense force hits regular concrete which typically handles only 3 to 5 megapascals before breaking it starts creating those little cracks we see spreading every time someone swings at it. The hexagonal shank on these tools actually stops them from spinning around while working, so they stay aligned properly. This helps maintain good contact between tool and material even after hours of pounding away at surfaces day after day.

Importance of maintenance for longevity and efficiency

Seals that have worn down or hydraulic fluid mixed with contaminants can cut impact energy anywhere between 25 to 40 percent after just around 500 operating hours. Checking those retaining pins on a daily basis and keeping the thru-bushing properly lubricated really helps prevent unexpected breakdowns. When manufacturers stick to their recommended maintenance plans, they tend to see about a 60 percent drop in equipment failures. And don't forget about the nitrogen chamber either – giving it a rebuild roughly every 1,500 hours keeps the striking action performing at its best level over time.

Impact Force, Frequency, and Performance Metrics

Measuring Effectiveness: Blows Per Minute and Joules of Impact Energy

When talking about how well breakers work, there are really just two main things that matter most: how many hits they deliver each minute (BPM) and the actual force behind those hits measured in joules. Most industrial breakers run somewhere between 600 and 1500 BPM these days. The bigger machines can pack quite a punch too, often going above 8000 joules when tackling tough demolition jobs. A recent look at data from 2023 showed something interesting though. When someone tried boosting the impact energy from 15 to 40 joules on 30 cm thick concrete, the improvement wasn't huge either it only went up from 76% to 81%. That suggests there's actually a sweet spot where adding more power doesn't really make much difference anymore.

High Frequency vs. High Impact Energy: Which Delivers Better Demolition Results?

Project specifications determine whether frequency or force should be prioritized:

• High-frequency models (1,200+ BPM) perform best on thin concrete (≤15 cm)
• High-impact units (4,000+ J) are more effective on thick, reinforced structures

Simulations reveal a trade-off: every 10% increase in BPM reduces per-blow energy by 3.1% due to hydraulic flow constraints (Energy Systems Analysis, 2024). For most urban applications, breakers operating at 800–1,000 BPM with 2,800–3,500 J offer the best balance of speed and power.

Durability Under Continuous Use and Thermal Management

Today's breaker systems keep things running cool below 65 degrees Celsius even after long work periods thanks to their advanced oil filtering system that traps about 95 percent of particles bigger than ten microns. The steel casings are layered to handle serious stress without breaking down, surviving pressures as high as 300 mega pascals. Special materials inside actually soak up heat energy at impressive rates around 150 joules per gram when needed. Maintenance makes all the difference too. Components generally last somewhere between forty to sixty percent longer with regular upkeep, and most folks find they need to swap out piston seals roughly every twelve hundred to fifteen hundred hours depending on how hard the equipment works day to day.

Application in Real-World Concrete Demolition Projects

Step-by-Step Process of Breaking Concrete with a Hydraulic Breaker

The process starts by getting the surface ready first things first marking where cracks should go and making sure there are no hidden pipes or wires running through the area. When attached to an excavator, workers position the demolition hammer so its tip stands straight against the concrete wall or floor they need to break up. These machines typically work between around 2,000 to maybe 3,000 pounds per square inch pressure range according to some research published last year in demolition studies journal. Each hit packs somewhere between 15 and 35 joules worth of force into breaking apart materials. Skilled operators move step by step across structures, carefully fracturing sections as their heavy machinery scoops away bits of rubble behind them. Most contractors report that sticking to these procedures results in roughly 85 percent of all broken materials being properly fragmented rather than just smashed into unusable chunks.

Excavator-Mounted Hydraulic Breakers in Urban and Infrastructure Projects

In city settings, wheeled excavators with breakers ranging from around 750 to 1,500 kilograms are becoming increasingly common because they can move easily and put less pressure on the ground surface (under 5 psi). The machines transmit about 40 percent less vibration than their tracked counterparts, which is why many crews prefer them when working close to roads or buildings that might be damaged. Looking at recent subway system improvements across several major cities, there has been a noticeable demand spike, with some projects needing well over 18 thousand hours of breaker operation each year. Most contractors seem to gravitate toward models that come with adaptive frequency controls, especially since these help handle different types of materials found on complex job sites.

Matching Breaker Settings to Concrete Thickness and Reinforcement Levels

Optimal settings depend on structural characteristics:

Concrete Thickness	Reinforcement Level	Recommended Impact Energy
<15 cm	Unreinforced	10–15 Joules
15–30 cm	Light rebar	20–25 Joules
>30 cm	Heavy mesh	30–40 Joules

Breakers equipped with sensing technology automatically reduce strike frequency by 15–20% when detecting steel content above 0.5%, minimizing tool wear. Adaptive hydraulic circuits maintain 95% energy transfer efficiency even when cutting through 50 MPa concrete with epoxy-coated reinforcement.

Selecting and Optimizing the Right Hydraulic Breaker

Proper selection directly influences productivity and operational costs. According to the 2023 Construction Equipment Efficiency Report, matching breaker specifications to project demands improves output by 40% and reduces wear-related downtime.

Choosing the Correct Breaker Type Based on Project Scale and Material Hardness

Project Type	Recommended Breaker Features	Material Considerations
Heavy-Duty Demolition	1,500–2,500 BPM 750–1,200 Joules	Reinforced concrete Thick foundations
Light-Duty Tasks	800–1,200 BPM 300–600 Joules	Asphalt Non-reinforced slabs

Manufacturers emphasize three critical selection criteria:

• Excavator weight capacity (breaker weight should not exceed 20% of machine operating weight)
• Material compressive strength (should be ≥ 1.5— the breaker’s impact energy for peak efficiency)
• Job duration (continuous operations demand higher thermal tolerance and robust sealing)

Adjusting Impact Force and Frequency for Optimal Efficiency

Operators must balance two primary variables:

1. Impact Energy (joules) — determines penetration depth per strike
2. Blows Per Minute (BPM) — controls fragmentation rate

For 300 mm thick reinforced concrete, field data shows that 1,800–2,200 J at 1,000–1,200 BPM achieves 35% faster results than fixed settings. Modern systems support real-time adjustments via:

• Variable flow control valves (±15% BPM adjustment)
• Automatic power regulation based on resistance
• Energy recovery systems that reuse 22% of impact shockwaves (2024 Hydraulic Systems Study)

Regular calibration using rebound sensors maintains peak performance; incorrect settings can increase fuel consumption by up to 28%. Always refer to manufacturer performance curves when adjusting parameters.

FAQ

What is the primary function of a hydraulic breaker?

A hydraulic breaker is designed to convert hydraulic power into mechanical energy, which is then used to fracture or break up hard materials like concrete and rock.

How does the hydraulic pressure influence the operation of a breaker?

Hydraulic pressure pushes fluid into the breaker's main chamber, moving the piston upwards. When the fluid's direction is switched, it rapidly sends the piston downward for impactful striking.

Why is an accumulator important in a hydraulic breaker system?

The accumulator acts as a shock absorber, storing excess energy and maintaining consistent impact performance by reducing pressure fluctuations.

How do maintenance practices affect the efficiency of hydraulic breakers?

Regular maintenance, like checking seals and lubricating parts, ensures efficient operation and longevity, reducing equipment failures by up to 60%.

What are the key factors to consider when selecting a hydraulic breaker for a project?

Considerations include the breaker’s impact energy, the weight capacity of the excavator, the project scale, material hardness, and job duration.
