How Hydraulic Power Units Deliver Efficient Mechanical Energy
The Role of Hydraulic Power Units in Modern Industrial Tools

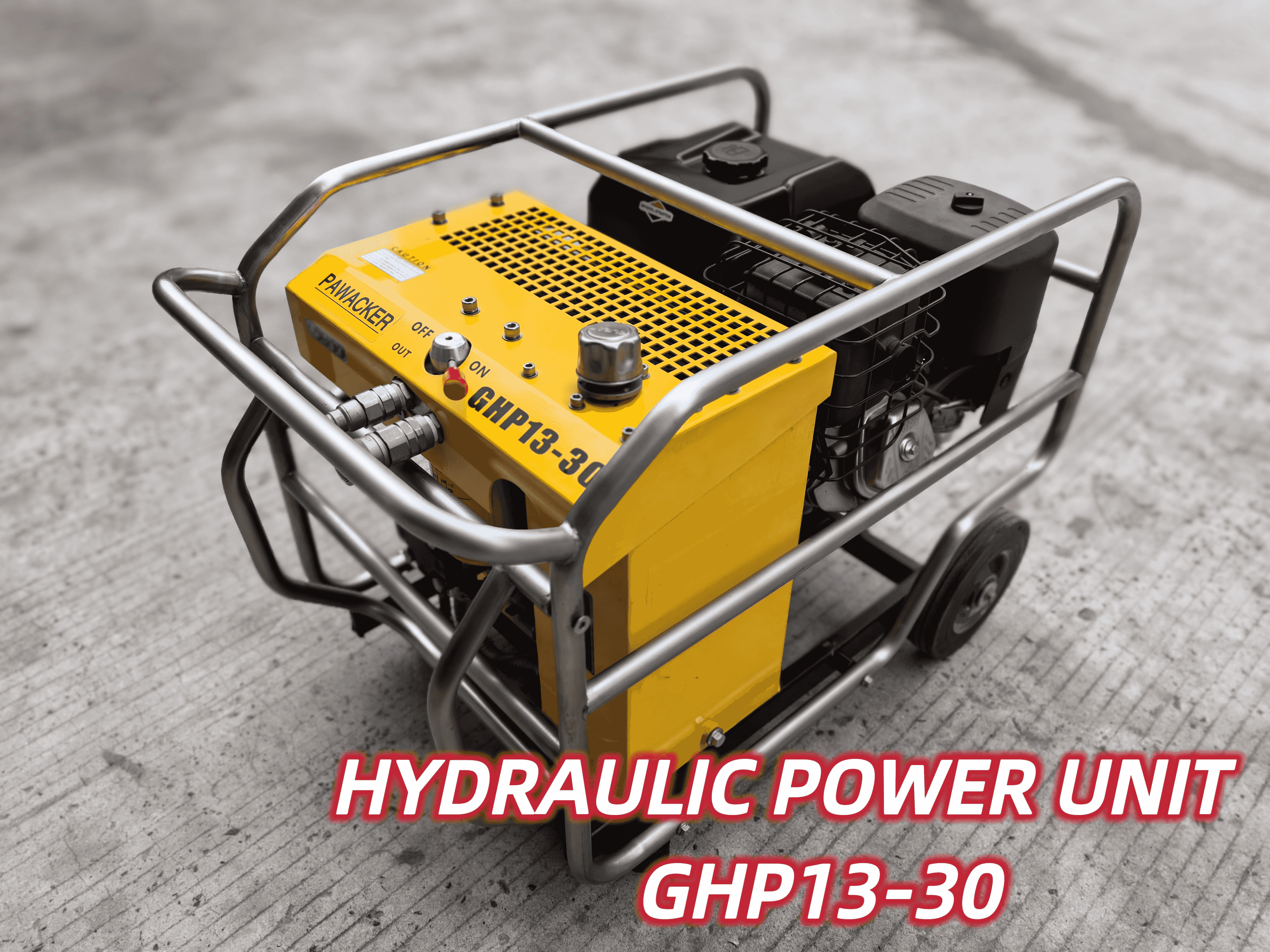

Hydraulic power units or HPUs are basically what keeps most industrial machines running, turning electricity into controlled hydraulic pressure when needed. These small but powerful systems let things like metal stamping machines and earthmoving gear generate pressures well over 10,000 psi. Recent tests from the IHRC in 2024 showed something interesting though - today's HPUs pack about 23% more punch per unit volume compared to old school pneumatic systems. That makes all the difference in tight spaces where every inch counts on factory floors or job sites.
Working Principle: Energy Conversion in Hydraulic Systems
HPUs operate on Pascal’s Law, transmitting pressure uniformly through confined fluid. An electric motor drives a pump that pressurizes hydraulic oil, which then transfers energy to actuators with minimal friction loss. According to fluid dynamics research, optimized systems achieve 85–92% mechanical efficiency by maintaining stable fluid viscosity and temperature.
Electric Motors and Pump Integration in Hydraulic Power Units
The synergy between motor and pump determines overall efficiency:
- Brushless DC motors reduce energy waste by 15% compared to AC induction models (IHRC 2023)
- Axial piston pumps maintain 94% volumetric efficiency under continuous operation
- Smart controllers match pump output to real-time demand, cutting idle losses by 40%
Strategies to Optimize Hydraulic Power Unit Efficiency
- Implement condition-monitoring sensors to detect viscosity changes
- Use variable displacement pumps for partial-load scenarios
- Schedule quarterly fluid analysis to prevent oxidation degradation
- Install helical gear pumps where pulsation-free flow is critical
A Hydraulic Institute (2023) case study showed these methods collectively improve system efficiency by 18–30% across mining and manufacturing applications.
Core Principles: Pascal’s Law and Fluid-Based Force Multiplication
Understanding Pascal’s Law in Hydraulic Force Transmission
The operation of hydraulic systems depends heavily on what's called Pascal's Law, which was actually formulated back in the 1600s. The basic idea here is simple enough - when pressure gets applied to fluid that can't escape, it spreads out evenly everywhere inside the system. What makes this so useful for hydraulics is how it lets small forces create much bigger ones. Take a look at any basic setup: put just 100 pounds per square inch onto a piston with an area of one square inch, and boom, you get 100 pounds of pushing power right there. Now imagine connecting that same pressure source to a larger piston measuring ten square inches instead. Suddenly we're talking about a thousand pounds of force! That's pretty impressive leverage for such a straightforward principle. Most engineers know that this direct relationship between force, pressure, and area means hydraulic equipment can scale up or down as needed while still maintaining good efficiency levels throughout most applications.
How Pressurized Fluid Enables High-Power Output with Minimal Input
Hydraulic oils don't compress much, which means most of the energy gets transferred directly to where it needs to go. This property lets systems create impressive force multiplication without needing complicated mechanical parts. Take a standard cylinder setup with a 20 to 1 surface area difference for instance. With the right pressure applied, such a system can actually lift objects that weigh twenty times what was originally put into it. But keep in mind that actual performance varies depending on how thick the oil is and how well it handles heat. When systems run too hot or develop leaks, all that pressure starts to drop off, which is why regular checkups are so important in industrial settings. Newer equipment has been designed to cut down on energy loss from friction, getting around 85 to maybe even 95 percent efficiency these days. That's way better than old school mechanical systems ever managed, though nobody claims it's perfect either.
Essential Components of a Hydraulic System and Their Functions
Hydraulic Pumps: Types, Performance, and Efficiency Comparison
Hydraulic pumps form the core of every hydraulic power unit, converting mechanical energy into fluid pressure. Three primary pump types dominate industrial applications:
| Pump Type | Pressure Range (psi) | Efficiency | Ideal Use Case |
|---|---|---|---|
| Gear | 500–3,000 | 85–90% | Cost-sensitive systems |
| Vane | 1,000–5,000 | 90–95% | Mid-pressure machinery |
| Piston | 3,000–10,000+ | 95–98% | High-precision operations |
Gear pumps offer affordability but limited pressure capacity, while piston pumps deliver unmatched efficiency for heavy-load systems. A 2023 Fluid Power Institute study found upgrading from gear to piston pumps can reduce energy consumption by 18% in high-demand applications.
Cylinders, Valves, and Hoses: Enabling Reliable Force Transfer
Hydraulic cylinders basically take fluid pressure and turn it into straight line movement. Some heavy duty models used in mining can handle loads well beyond 500 tons, though exact numbers vary depending on the application. Directional control valves handle all sorts of flow rates, sometimes reaching around 100 gallons per minute. Meanwhile pressure relief valves act as insurance against system overload problems by redirecting extra fluid when things get too intense. For high pressure systems, manufacturers typically specify hoses with safety margins somewhere around 4 to 1 ratio. This helps keep everything sealed tight even when pressures hit 6,000 pounds per square inch. Industry research indicates that getting valve sizes right makes a noticeable difference in production efficiency. One recent study found cycle times improved about 22 percent for certain types of assembly line robots when valves were properly sized from the start.
Fixed vs. Variable Displacement Pumps: Impact on System Efficiency
Fixed displacement pumps keep their flow rate steady throughout operation, which works well for things that need consistent movement such as conveyor belts moving products along assembly lines. On the other hand, variable displacement pumps can actually change how much fluid they push through depending on what's needed at any given moment. This ability cuts down on wasted energy significantly when dealing with workloads that go up and down throughout the day. The numbers back this up too many industrial reports show around a third to almost half less energy consumption in these situations. Take construction equipment for instance excavators equipped with variable displacement tech tend to save roughly 12 percent on fuel costs when operating under less than full capacity conditions compared to older fixed displacement alternatives.
System Integration for Maximum Performance and Reliability
Optimal hydraulic system performance requires precise coordination between components:
- Pump-motor alignment within 0.002 inches minimizes vibration
- Fluid filtration to ISO 4406 18/16/13 cleanliness standards extends component lifespan
- Temperature controls maintaining 120–180°F fluid range prevent viscosity breakdown
Properly integrated systems achieve 95% operational uptime, compared to 78% for poorly configured setups. Regular maintenance addressing reservoirs, pumps, valves, actuators, and filtration reduces unscheduled downtime by 60% in manufacturing plants.
The Role of Hydraulic Fluid in System Efficiency and Longevity
How Hydraulic Fluid Transmits Power and Manages Heat
The hydraulic fluid inside power units is basically what keeps everything running smoothly, moving energy around under pressure while doing three main jobs at once: transmitting power, lubricating parts, and getting rid of excess heat. When we talk about Pascal's principle here, it means these fluids can really boost the force applied to them with almost no loss in efficiency. A recent study looking at fluid dynamics back in 2024 showed that newer formulas cut down on wasted energy by about 18 percent when compared to older versions. What makes this stuff so good? Well, it absorbs all that heat coming off the pumps and valves before things start breaking down from too much heat. Some of the better synthetic mixtures stay stable even when temps hit 160 degrees Fahrenheit during operation, which is pretty impressive considering what they're up against day after day.
Viscosity, Temperature, and Fluid Selection Trade-offs
Selecting hydraulic fluid requires balancing viscosity grades against operational demands:
- High-viscosity fluids provide better sealing in gear pumps but increase resistance during cold starts
- Low-viscosity options reduce friction losses by 12–15% in compact power units (CNtopa 2023 report)
- Thermally stable additives prevent viscosity breakdown in high-cycle systems
Manufacturers increasingly adopt multi-grade ISO VG fluids that automatically adjust viscosity across -20°F to 250°F ranges, eliminating seasonal fluid changes in temperate climates.
Maintaining Fluid Health to Extend System Lifespan
Regular fluid analysis catches 83% of preventable hydraulic failures before they occur. Key maintenance practices include:
- Quarterly particle counting to detect pump wear below 10 µm
- Annual acid number (AN) testing to monitor oxidation
- Real-time moisture sensors preventing emulsification
By replacing filters at 90% saturation thresholds rather than fixed intervals, operators in a 12-month field trial extended fluid service life by 40% without compromising reliability.
Frequently Asked Questions (FAQ)
What is a Hydraulic Power Unit (HPU)?
A Hydraulic Power Unit is a system that converts electricity into controlled hydraulic pressure, enabling industrial machines to generate significant force efficiently.
How does Pascal's Law apply to hydraulic systems?
Pascal's Law states that pressure applied to a confined fluid is transmitted uniformly, allowing small forces to create larger multiplication of forces in hydraulic systems.
Why are variable displacement pumps more energy efficient?
Variable displacement pumps can adjust the flow rate based on demand, reducing energy consumption by not forcing the system to maintain a constant flow when it's not needed.
What role does hydraulic fluid play in system efficiency?
Hydraulic fluid transmits power, lubricates parts, and dissipates heat, with advancements in fluid formulas leading to reductions in wasted energy and enhanced efficiency.
How can hydraulic system efficiency be optimized?
Efficiency can be improved by using condition-monitoring sensors, variable displacement pumps, conducting regular fluid analysis, and ensuring proper system integration and maintenance.
